Products
Clamps for LYSAGHT KLIP-LOK® & like roof profiles
.png)
.png)

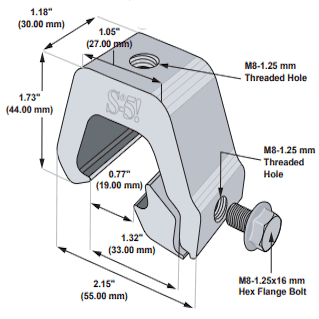

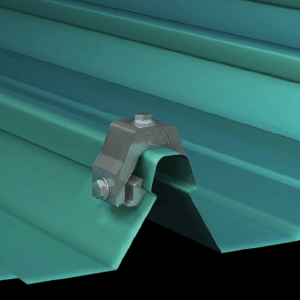

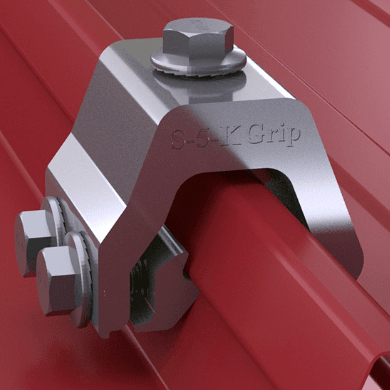

The S-5-K Grip Mini clamp was specifically developed to fit concealed fix roof profiles.
The clamp utilises one of two inserts in order to accommodate a variety of bulb snap-together profiles;
1. GXM50 Insert; LYSAGHT KLIP-LOK 700®, Stramit Speed Deck Ultra®, Fielders KingKlip, Metroll Metlok 700, Revolution Roofing Rev-Klip 700
2. GXM10 Insert; LYSAGHT KLIP-LOK 406®

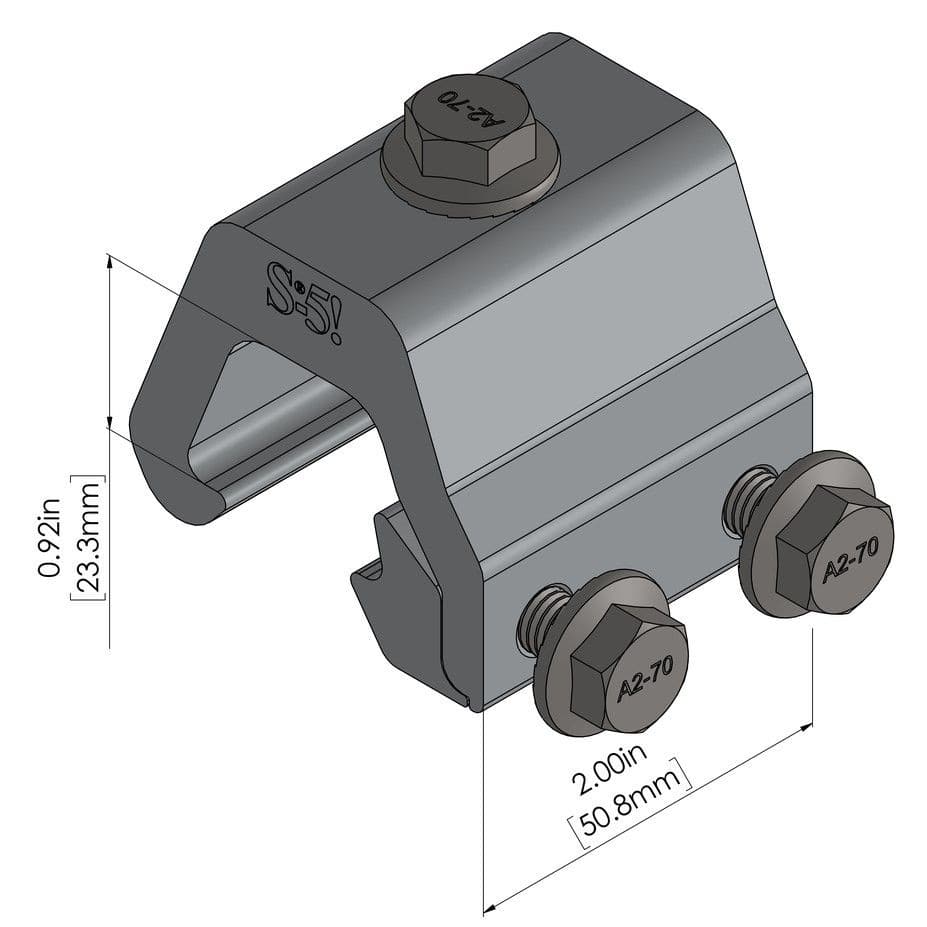

The S-5-K Grip clamp was specifically developed to fit concealed fix roof profiles. The clamp utilises one of two inserts in order to accommodate a variety of bulb snap-together profiles;1. GX50 Insert; LYSAGHT KLIP-LOK 700®, Stramit Speed Deck Ultra®, Fielders KingKlip, Metroll Metlok 700, Revolution Roofing Rev-Klip 7002. GX10 Insert; LYSAGHT KLIP-LOK 406®
Brackets for Corrugated roof profiles

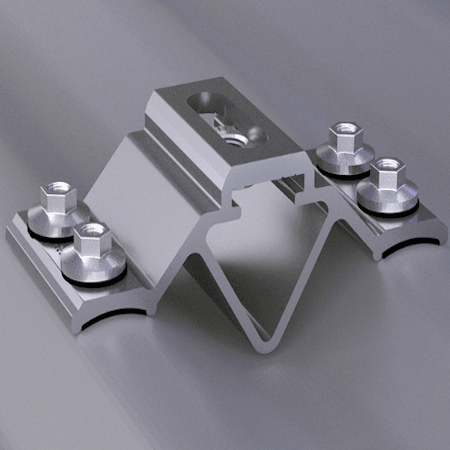

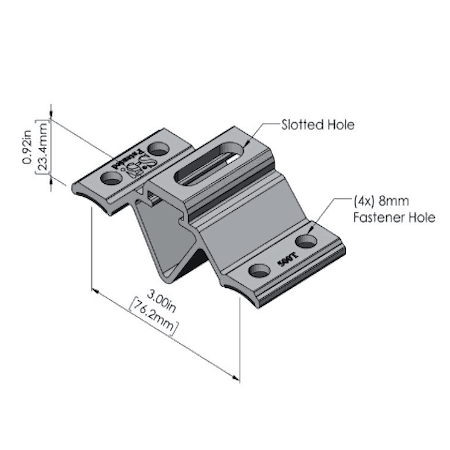

The S-5!® CorruBracket 500T is the right way to attach almost anything to 16–18 mm corrugated roofing (76 to 78mm rib to rib spacing). It is designed specifically for Australia.
CorruBracket 500T is affixed to the crest of the corrugation, leaving the drainage plane free of holes to protect against leaks. For medium-duty applications, the bracket can be attached directly to the sheeting, accommodating ancillary attachment anywhere along the corrugation.
For heavy‑duty applications, the bracket can be fixed into the underlying substrate for additional support without crushing the corrugation.
CorruBracket 500T is affixed to the crest of the corrugation, leaving the drainage plane free of holes to protect against leaks. For medium-duty applications, the bracket can be attached directly to the sheeting, accommodating ancillary attachment anywhere along the corrugation.
For heavy‑duty applications, the bracket can be fixed into the underlying substrate for additional support without crushing the corrugation.

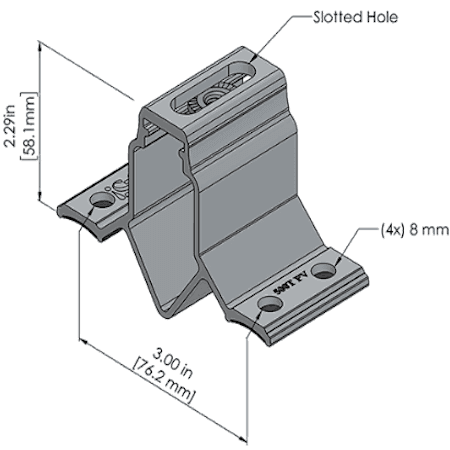

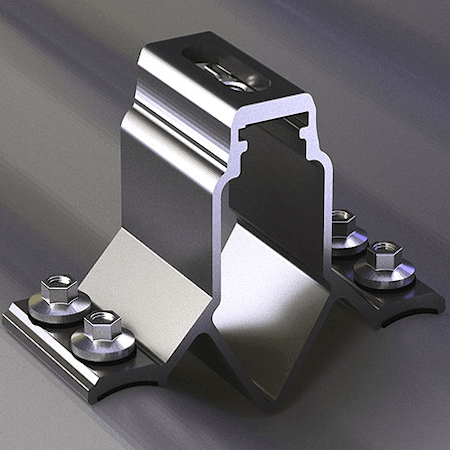

CorruBracket 500T PV is your solar solution for corrugated roofing profiles common in metric profiling markets and is compatible with 19-22+ mm tall and 76 to 78mm mm crest to crest corrugated roofing profiles.
Affixed to the crest of the corrugation, CorruBracket 500T PV leaves the drainage plane free of holes to protect against leaks. This bracket can be attached directly to the sheeting, accommodating attachment anywhere along the corrugation making module layout a snap.
Features & Benefits:
Affixed to the crest of the corrugation, CorruBracket 500T PV leaves the drainage plane free of holes to protect against leaks. This bracket can be attached directly to the sheeting, accommodating attachment anywhere along the corrugation making module layout a snap.
Features & Benefits:
- Open channel for wire containment/management
- Bracket allows glass to sit 100+ mm above valley of corrugation
- Fix bracket into sheeting only – allowing module placement anywhere on roof
- Slotted top hole offers over 25 mm of E-W adjustability
- 6000 Series AL; 300 Series SS hardware
- PVKIT™ 2.0 compatible
- Factory-applied EPDM for no-mess waterproofing
- EPDM reservoir for protection from harmful sunlight and to prevent over-compression of waterproofing
- Fix micro inverters or optimizers
Brackets for Trimdek / Trapezodial roof profiles
.png)

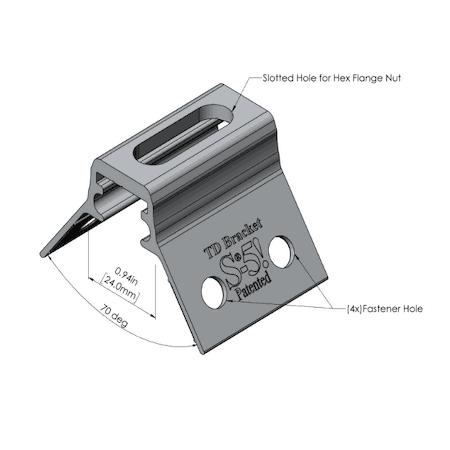

The S-5!® TD bracket is the right way to attach almost anything to Trimdek, Monoclad or other / Trapezodial profiles.
It is designed specifically for Australia.The TD bracket is affixed to the sides of the trapezodial rib, leaving the drainage plane free of holes to protect against leaks. For medium-duty applications, the bracket can be attached directly to the sheeting, accommodating ancillary attachment anywhere along the corrugation.For heavy‑duty applications, the bracket can be fixed into the underlying substrate for additional support without crushing the corrugation.

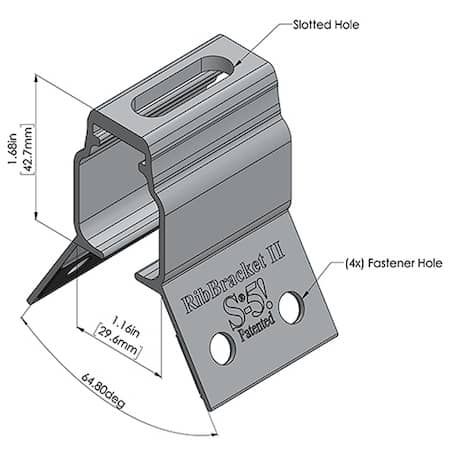

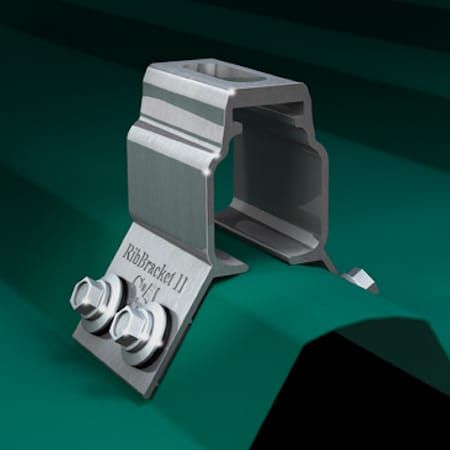

RibBracket II is the right way to attach almost anything to select exposed-fastened, trapezoidal roof profiles, including solar solutions through DirectAttached™ or bottom mount rails.
With RibBracket II, there are no messy sealants to apply and no chance for leaks! RibBracket comes with a factory-applied EPDM rubber gasket seal already on the base, and the reservoir conceals the EPDM from UV exposure, preventing drying and cracks.
RibBracket is the perfect match for our S-5-PVKIT 2.0, or bottom mount rails. RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries.
With RibBracket II, there are no messy sealants to apply and no chance for leaks! RibBracket comes with a factory-applied EPDM rubber gasket seal already on the base, and the reservoir conceals the EPDM from UV exposure, preventing drying and cracks.
RibBracket is the perfect match for our S-5-PVKIT 2.0, or bottom mount rails. RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries.

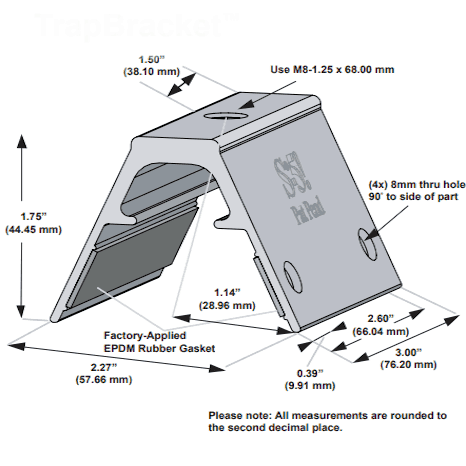

The TrapBracket™ 2.0 is designed specifically for the Kingspan KS 1000 RW roof profile and enables you to to mount basically anything to this exposed-fastened trapezoidal composite panel roof system without having to worry about trying to fix into the supporting steel structure or penetrating the internal liner sheet.The EPDM Insert allows the TrapBracket to be installed on other roof profiles dissimilar to that it was originally designed to fit. It is extremely economical and strong making it perfect for many applications including: HVAC / Rooftop Equipment, Walkways, Pipes, Satellite Dishes, Antennas and many more.

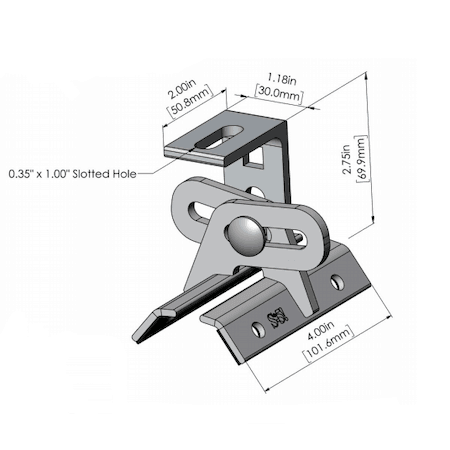

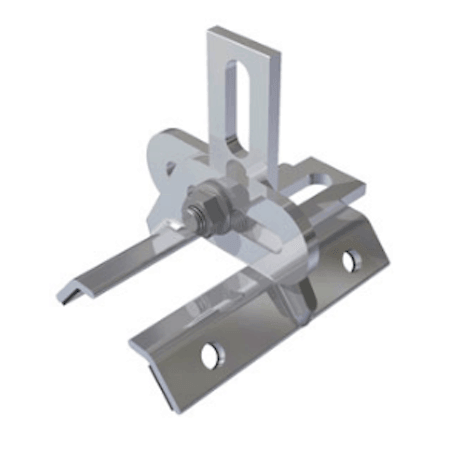

The ProteaBracket is the Right Way to attach solar PV to trapezoidal roof profiles (particularly composite panel roof systems) other than Trimdek / Monoclad and Kingspan KS 1000 RW.
ProteaBracket, made in aluminum, is the most versatile trapezoidal metal roof attachment solution on the market.
The bracket features an adjustable attachment base and module attachment options to accommodate different roof profile dimensions and mounting options.
The bracket features an adjustable attachment base and module attachment options to accommodate different roof profile dimensions and mounting options.
Clamps for Architectural Panel profiles

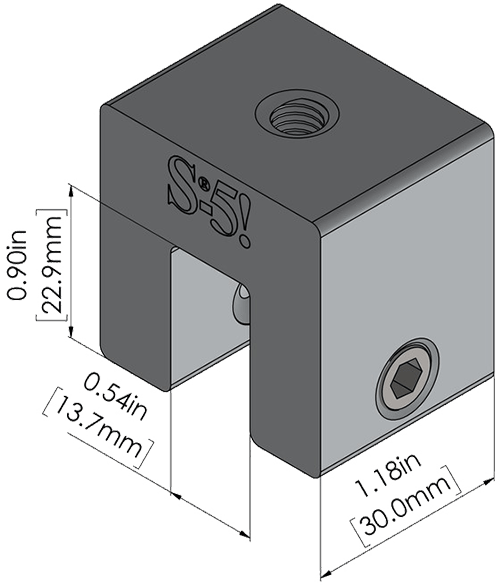

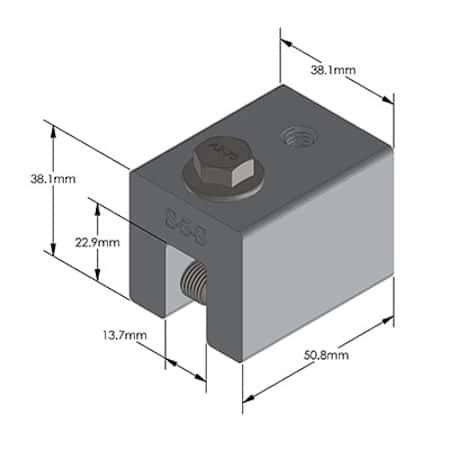

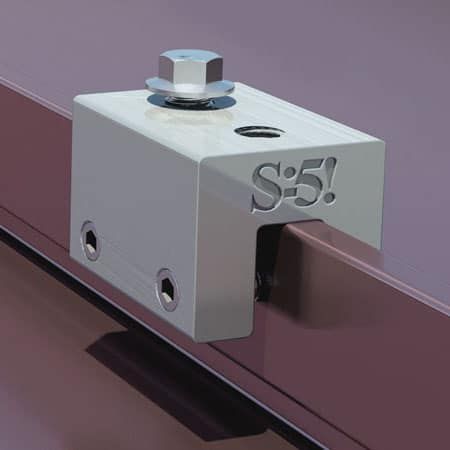

The S-5-S and S-5-S Mini clamps were created specifically for popular Architectural Panel profiles—including;
- Snap-Line 45®, LongLine 305, Maxline 340
- Snap Lock 25mm and 38mm
- Standing Seam (Single Fold) 25mm and 38mm
The S-5-S Mini is shorter and has one setscrew rather than two.
The round-point setscrews do not penetrate the weathering membrane of the roof, nor damage the protective Zincalume coatings of steel panels. They will not cause scoring which can lead to roof material fracture or premature corrosion, including rust, thereby voiding the roof manufacturer’s warranty. The clamps are ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!
The round-point setscrews do not penetrate the weathering membrane of the roof, nor damage the protective Zincalume coatings of steel panels. They will not cause scoring which can lead to roof material fracture or premature corrosion, including rust, thereby voiding the roof manufacturer’s warranty. The clamps are ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!

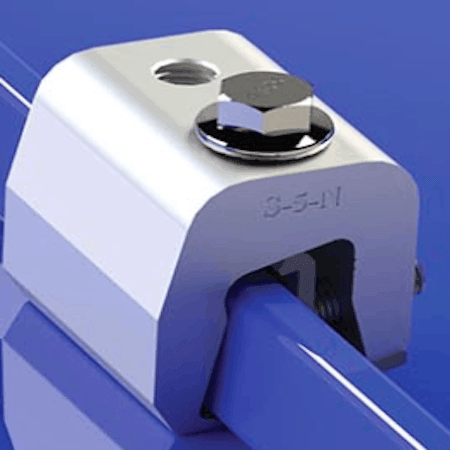

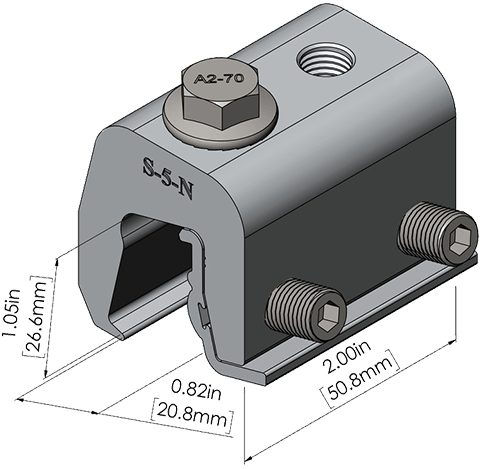

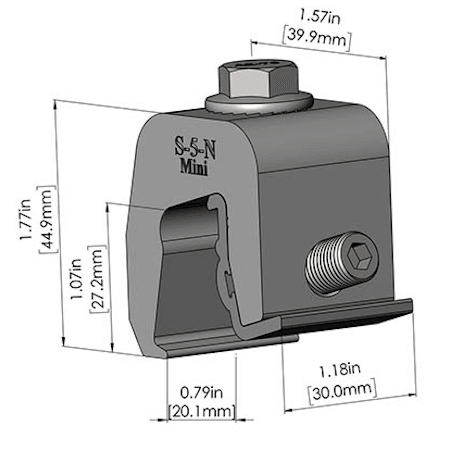

S-5-N and S-5-N Mini features an innovative insert that ensures a superior fit for Nail Strip profiles.
The S-5-N Mini is shorter and has one setscrew rather than two.
The round-point setscrews do not penetrate the weathering membrane of the roof, nor damage the protective Zincalume coatings of steel panels. They will not cause scoring which can lead to roof material fracture or premature corrosion, including rust, thereby voiding the roof manufacturer’s warranty.

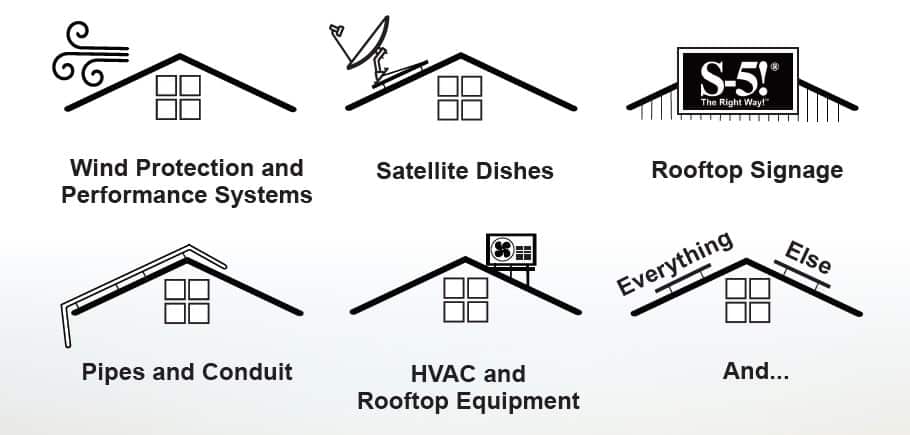

The clamps are ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!
The clamps are ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!

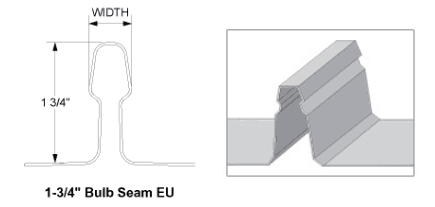

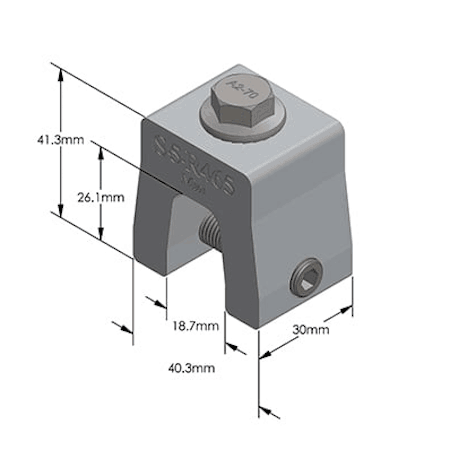

The S-5-R465 Mini clamps are created specifically to fit 1 3/4 inch (44mm) bulb seam snap lock profiles.
The strength of the S-5-R465 Mini is in its simple design. The clamps are uniquely designed with opposing setscrews to maximize holding strength.
The round-point setscrews do not penetrate the weathering membrane of the roof, nor damage the protective Zincalume coatings of steel panels. They will not cause scoring which can lead to roof material fracture or premature corrosion, including rust, thereby voiding the roof manufacturer’s warranty.
The strength of the S-5-R465 Mini is in its simple design. The clamps are uniquely designed with opposing setscrews to maximize holding strength.
The round-point setscrews do not penetrate the weathering membrane of the roof, nor damage the protective Zincalume coatings of steel panels. They will not cause scoring which can lead to roof material fracture or premature corrosion, including rust, thereby voiding the roof manufacturer’s warranty.

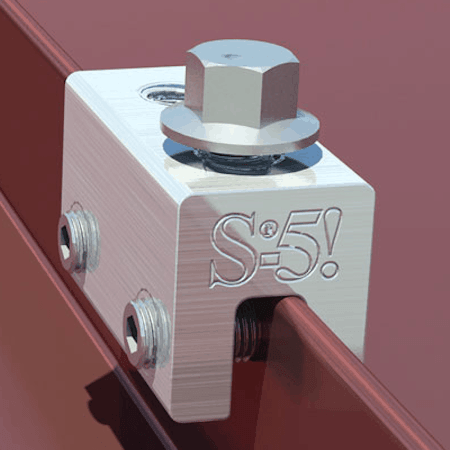

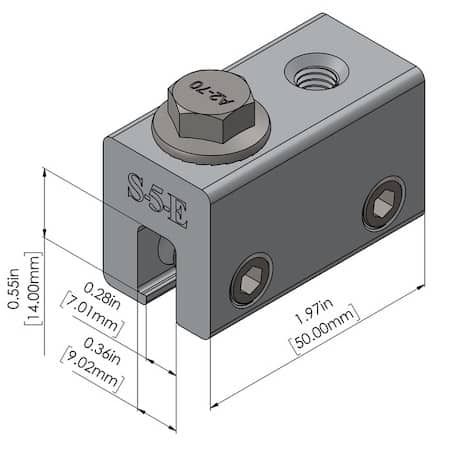

The S-5-E clamp is designed specifically for double-folded standing seam roof profiles having the appropriate dimensioning.
The S-5-E Mini is shorter and has one setscrew rather than two.
The clamps are ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!
The clamps are ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!

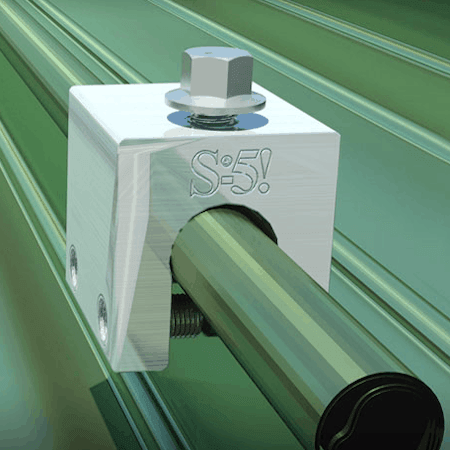

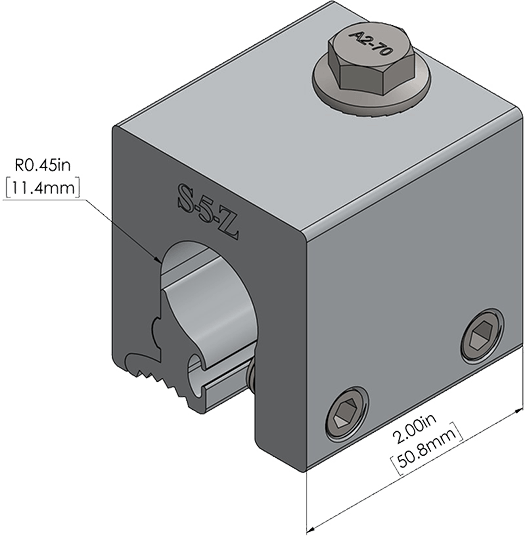

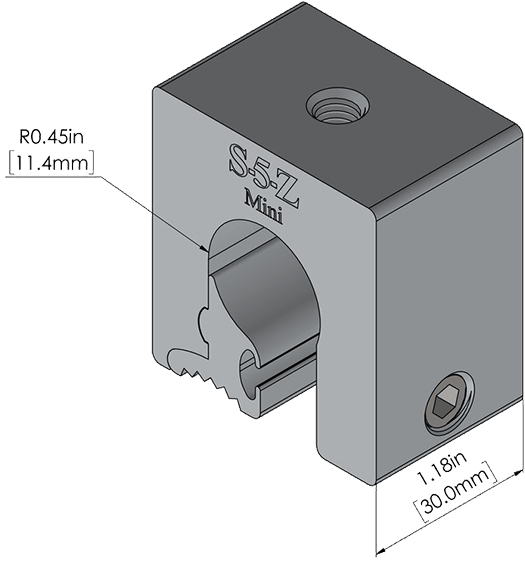

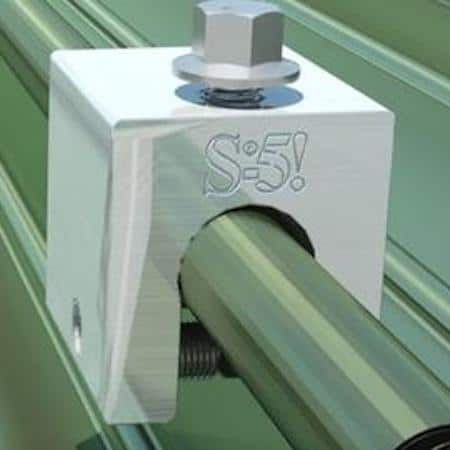

S-5-Z & S-5-Z Mini Clamps
The S-5-Z clamp is specially developed to fit roof profiles having a round “bulb” seam configuration including the Kingspan KingZip profile.
Its two-piece design allows it to be easily installed anywhere along the length of the rib.
The round-point setscrews do not penetrate the weathering membrane of the roof, nor damage the protective Zincalume coatings of steel panels. They will not cause scoring which can lead to roof material fracture or premature corrosion, including rust, thereby voiding the roof manufacturer’s warranty. The clamps are ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!
The round-point setscrews do not penetrate the weathering membrane of the roof, nor damage the protective Zincalume coatings of steel panels. They will not cause scoring which can lead to roof material fracture or premature corrosion, including rust, thereby voiding the roof manufacturer’s warranty. The clamps are ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!
Solar PV Panel Direct Attach Solutions
The concept of combining PV arrays with standing seam metal roofing is growing—for good reasons. Metal roofs have a life expectancy of more than 40 years. Shouldn’t the mounting system last as long? With S-5! zero-penetration attachment technology and PVKIT 2.0, the solarized metal roof is the most sustainable system available –and without compromising roof warranties! PVKIT 2.0 is the also the best solution for attaching PV modules directly to any exposed fastener metal roof.

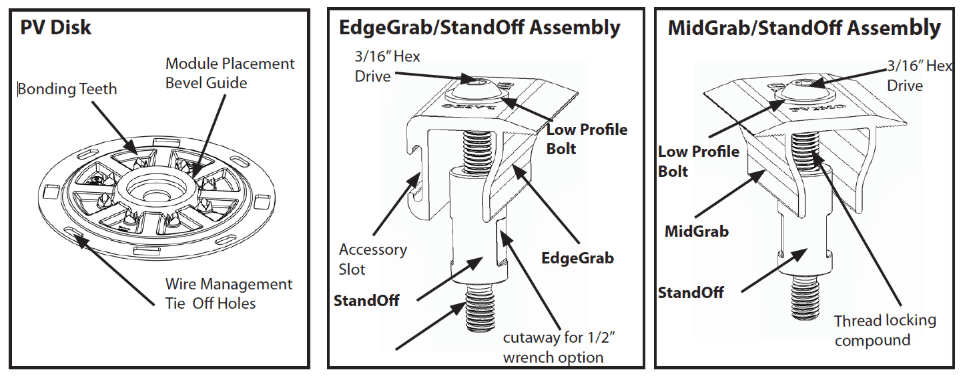

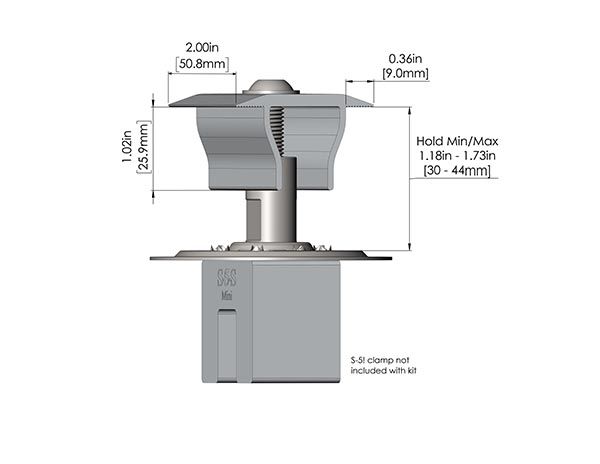

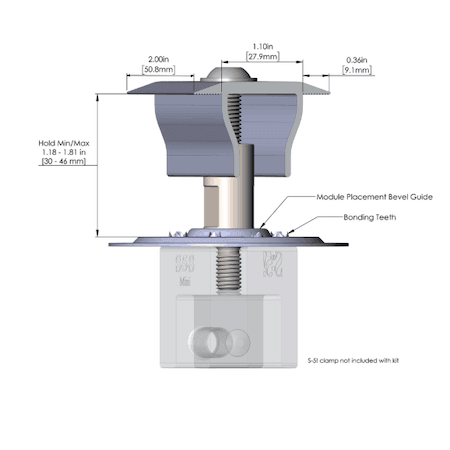

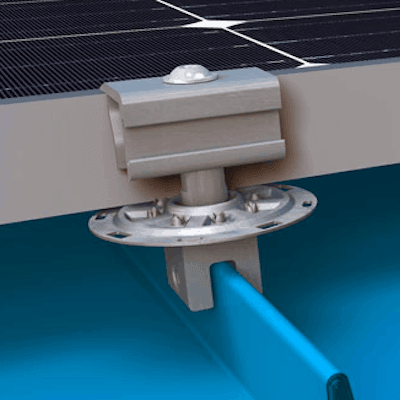

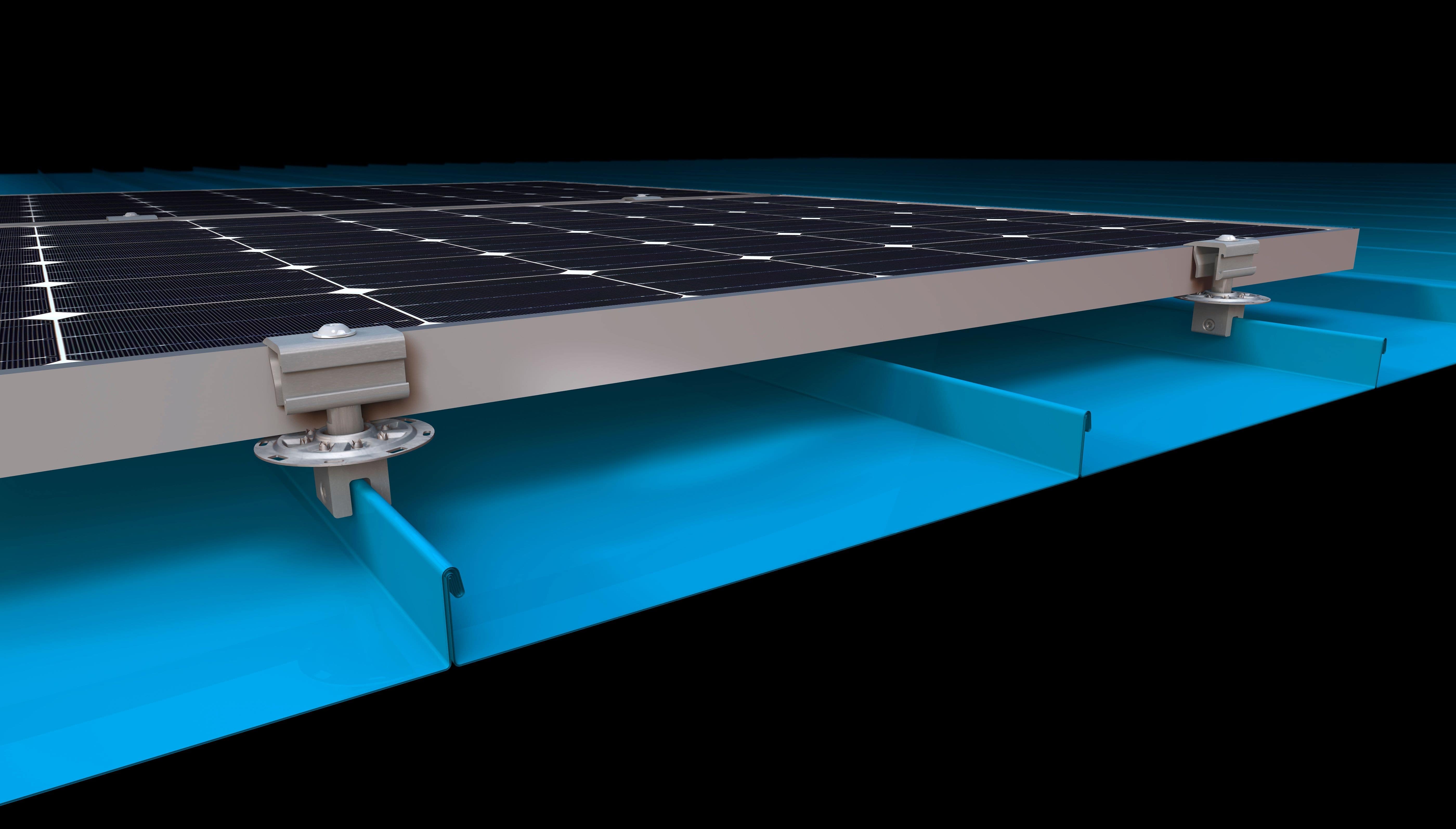

S-5! PVKIT 2.0, provides lower installation time and cost for PV flush-mounting. The kit comes preassembled with MidGrab or EdgeGrab for easier and more efficient installation. A single tool drives the top bolt, eliminating several installation steps. The PVKIT 2.0 features more aggressive bonding teeth for better grounding. Fewer lugs/ground wires required.
The S-5 PVKIT 2.0 is designed to save you time and money.
PVKIT Features:
- Preassembled components save time and money
- Versatile: same kit for most module thicknesses
- Only one tool needed for installation
- Installs with module, reducing lay-out time
- All non-corrosive aluminum and stainless steel

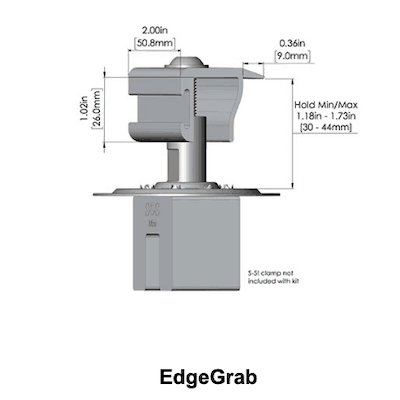

- Single-piece EdgeGrab installs with ease
- Added slots for wire tie-off
- Low profile hardware provides flush, clean finish
- Available in black by special order
- 1″ (25mm) gap between modules, allowing load reduction per ASCE-7
- UL 2703 Listed
HVAC Split System Mounting
.png)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

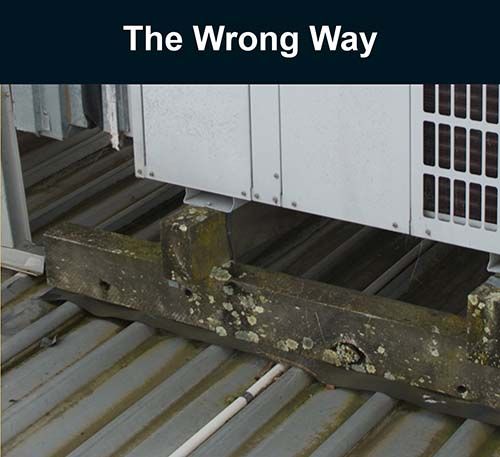

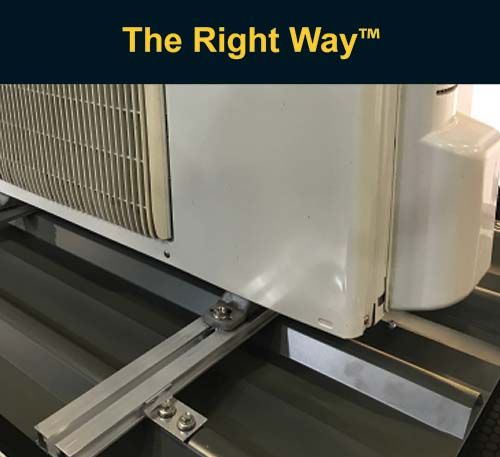

Roof-mounted utilities, such as split system condensing units, duct supports, communication equipment and service walkways can support a building envelope or compromise it.
The S-5! gRipperFix system, with S-5! clamps and brackets are The Right Way® to mount to any metal roof using our lifetime “double-seal” performance – or no roof penetration at all. gRipperFix is quick & simple to install, preserves warranties and lasts the as long as the roof itself.Don’t leave it to chance: Fix it, so it never needs “fixing.” S-5! affordable mounting products ensure roof integrity preserved from corrosion, leaks, rust, or algae. Done once- the right way – It’s ripper!

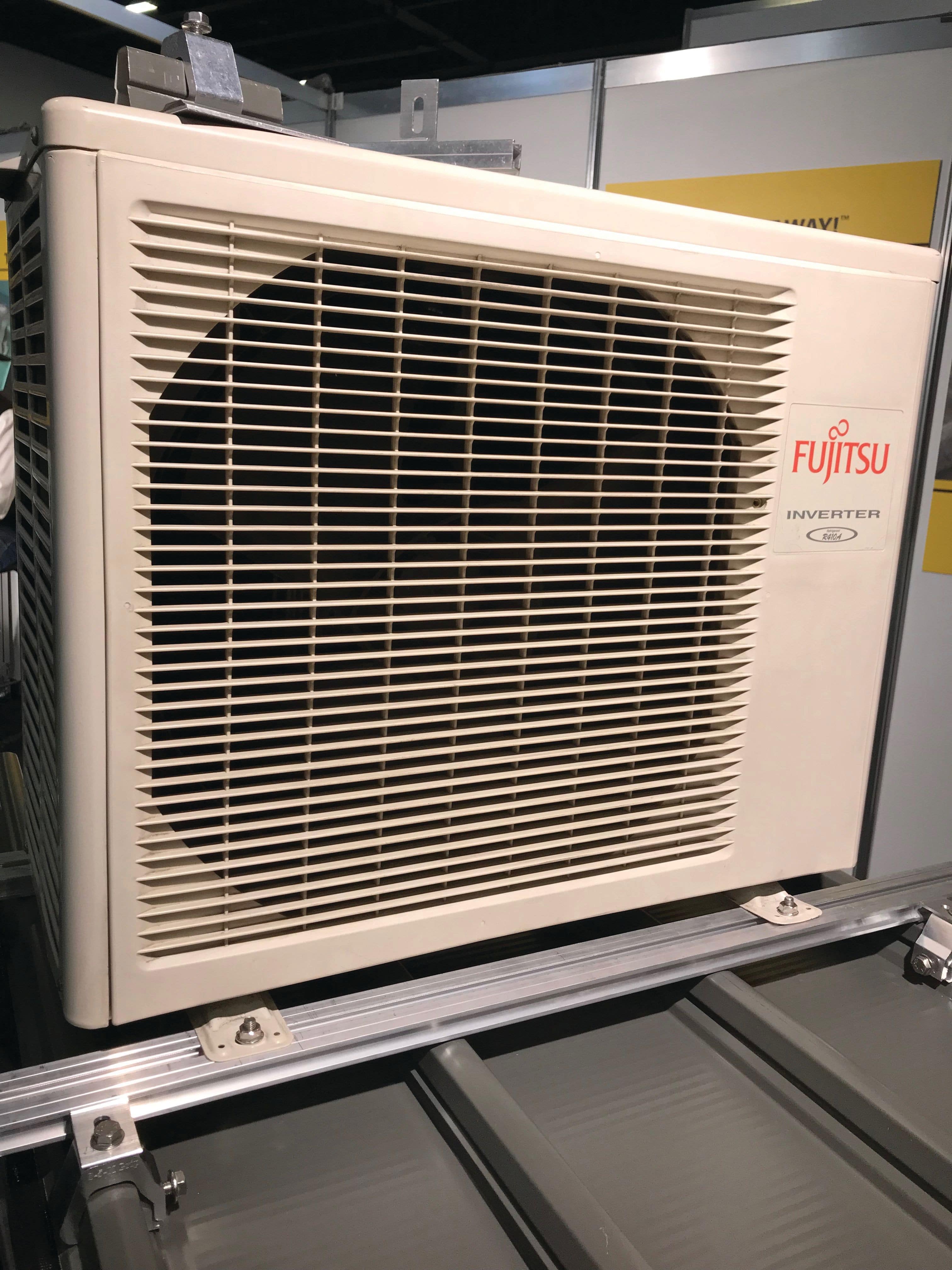

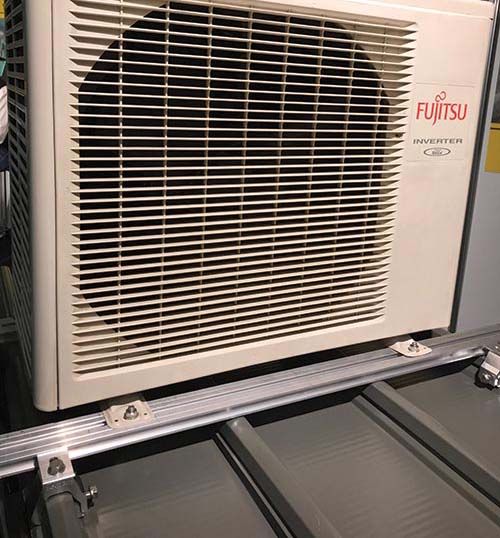

gRipperFix Concealed Fix Roof System for LYSAGHT KLIP-LOK® & like profiles
The S-5! gRipperFix system for Concealed Fix roof profiles (such as KlipLok 700®) consists of;
- S-5-K Grip Mini clamps with inserts (GXM50 or GXM10)

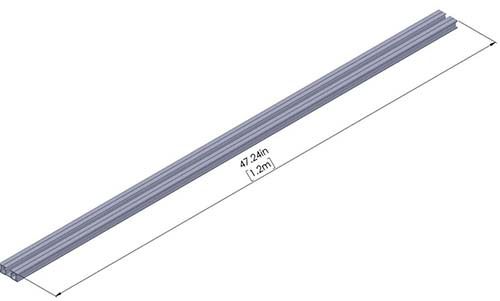

- gRipperFix Rail (Strut)

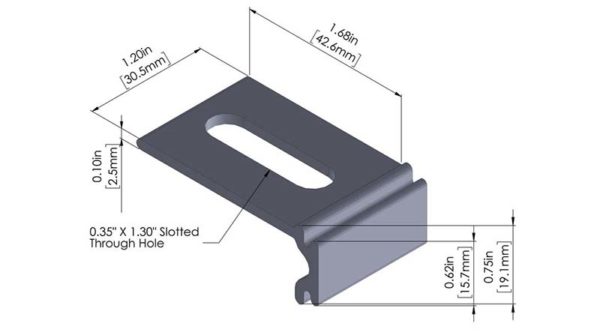

- S-5- Tab Conceal Fix (CF)

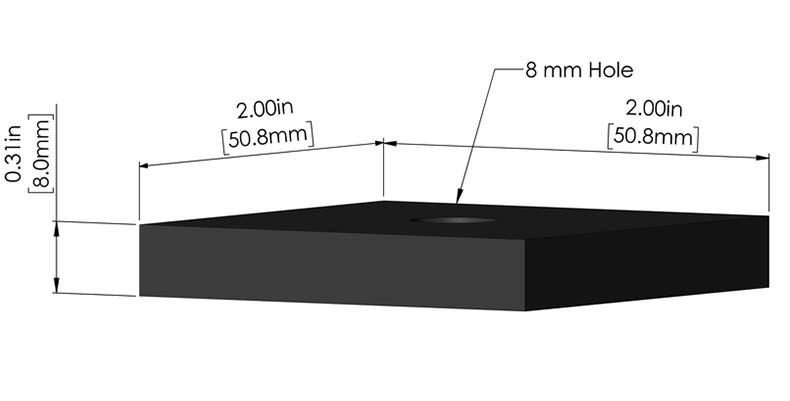

- Damper Pad

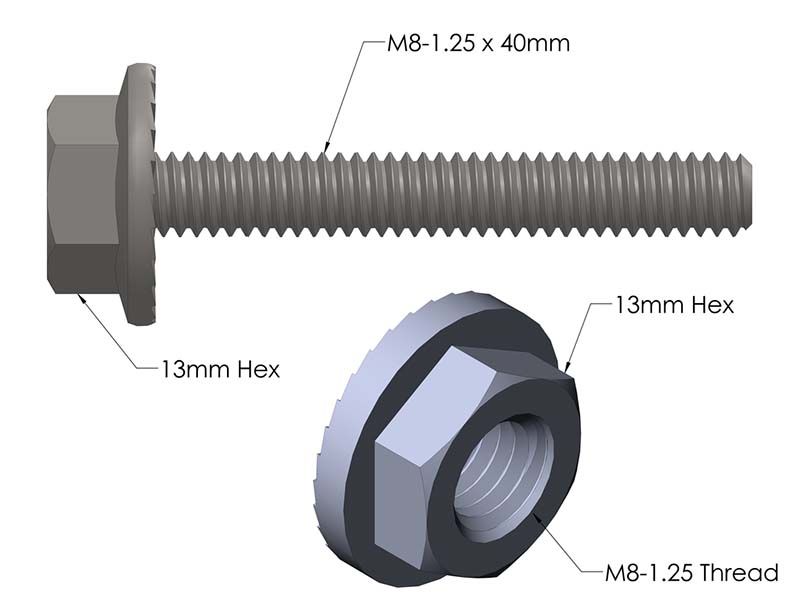

- M8- 1.25 x 40 mm Bolt and M8- Hex Flange Nut
The rail, S-5! clamps, and concealed-fix tabs are all that are needed. Just slide tab into the strut and fix to the top of the clamps (bolts provided). This system is suitable for KlipLok 700® and Speed Deck Ultra® profiles. The most commonly used S-5! clamp for these profiles is the S-5-K Grip Mini.
Pads for vibration reduction/leveling and other mounting hardware are also available.Does not damage the roof system - No holes- penetration-free attachmentFree flow of rainwater under the system- no capillary entrapmentLoad distribution over minimum of 8 bearing points (panel ribs)

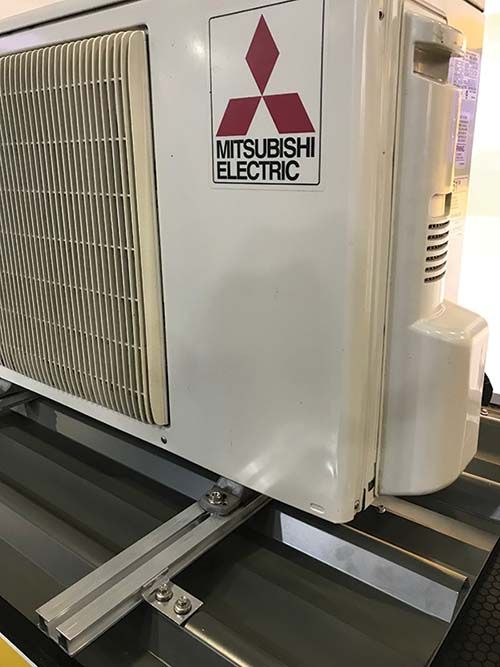

gRipperFix Exposed Fix Roof System for Corrugated & Trapezodial profiles

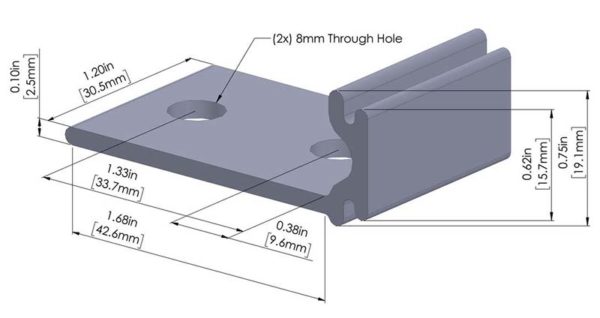

The S-5! gRipperFix system for Exposed Fix roof profiles (such as TRIMDEK® or CUSTOM ORB®) consists of;- S-5 Tab Exposed Fix (EF) and screws- gRipperFix Rail (Strut)- Damper Pad- M8- 1.25 x 40 mm Bolt and M8- Hex Flange Nut
The rail, and pierce-fix tabs are all that are needed. The tab slides into the strut and fixes to the rib (self-piercing screws provided).
gRipperFix strut is compatible with TRIMDEK®, CUSTOM ORB® and other piece-fix roofs.
Pads for vibration reduction/leveling and mounting hardware are also available.Self piercing fasteners result in no drilling swarf or rustExclusive EPDM factory “double-seal” on the S-5 Tab Exposed Fix (EF) and screwsFree flow of rainwater under the system- no capillary entrapmentLoad distribution over minimum of 8 bearing points (panel ribs)
If you are unsure about the right clamp or bracket to fit your roof profile please click here
HVAC Mounting Solutions
General advantages of our HVAC Mounting Solutions
Roof-mounted utilities, such as split system condensing units, duct supports, communication equipment and service walkways can support a building envelope or compromise it. The S-5! GRIPPERFIX system, with S-5! clamps and brackets are The Right Way™ to mount to any metal roof using our lifetime “double-seal” performance – or no roof penetration at all. GRIPPERFIX is quick & simple to install, preserves warranties and lasts the as long as the roof itself.Don’t leave it to chance: Fix it, so it never needs “fixing.” S-5! super efficient, affordable mounting products ensure roof integrity preserved from corrosion, leaks, rust, or algae. Done once- the right way – It’s ripper!
Solar Mounting Solutions
General advantages of our Solar Mounting Solutions
Mounting PV arrays on metal roofing is growing—for good reasons. Metal roofs have a life expectancy of more than 40 years. Shouldn’t the mounting system last as long? With S-5! zero-penetration attachment technology and PVKIT 2.0, the solarized metal roof is the most sustainable system available –and without compromising roof warranties! PVKIT 2.0 is the also the best solution for attaching PV modules directly to any exposed fastener metal roof.
- Labor costs are considerably lower.
- Transport costs are considerably lower,
- Roof weight loading is significantly lower and better weight distribution
- Space savings in storage and on the jobsite
- 25 year warranty on all S-5! components

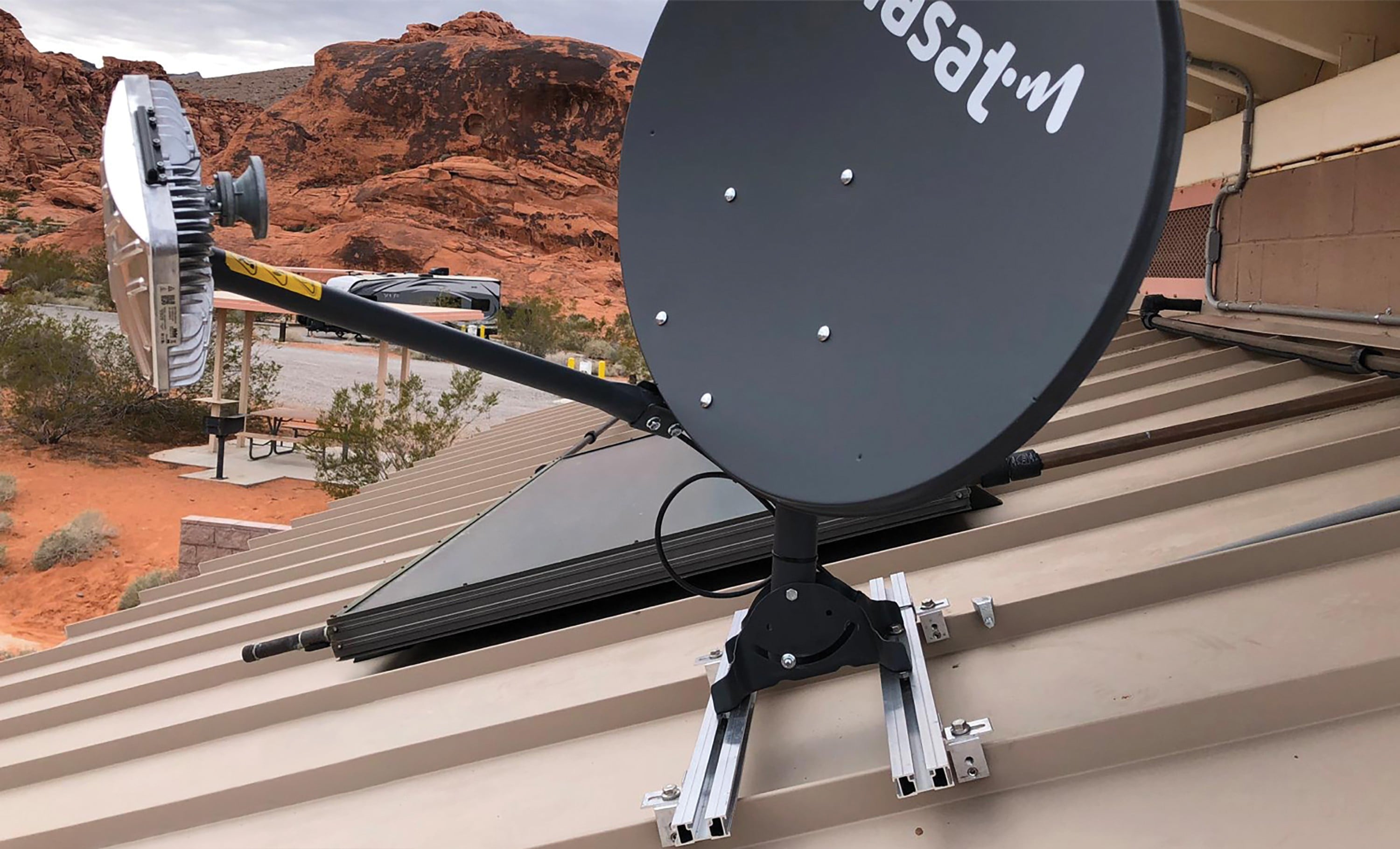

Communications Equipment Mounting Solutions
General advantages of Communications Equipment Mounting Solutions
Roof-mounted communications equipment can add value to a building or compromise it. The S-5! GRIPPERFIX system, with S-5! clamps and brackets are The Right Way™ to mount comms equipment to any metal roof using our lifetime “double-seal” performance – or no roof penetration at all. GRIPPERFIX is quick & simple to install, preserves warranties and lasts the as long as the roof itself.Don’t leave it to chance: Fix it, so it never needs “fixing.” S-5! super efficient, affordable mounting products ensure roof integrity preserved from corrosion, leaks, rust, or algae. Done once- the right way – It’s ripper!
Free Onsite Demonstration
Contact us today to organise an onsite demonstration of the super efficient, hassle free, cost saving solutions
